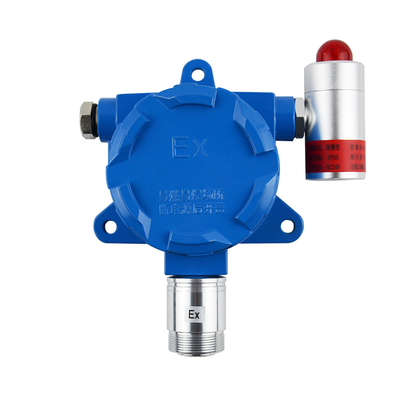

CE ATEX Fixed RS485 Modbus H2S H2S HFT-485-H2S Sensor Hydrogen Sulfide Gas Detector

1 Piece
MOQ
CE ATEX Fixed RS485 Modbus H2S H2S HFT-485-H2S Sensor Hydrogen Sulfide Gas Detector
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: One year
Type: Fixed
Customized support: OEM, ODM
Model Number: HFT-485-H2S
Product name: Fixed RS485 Modbus Hydrogen sulfide detector
Sensor type: Eletrochemistry Sensor
Sampling method: Natural Diffusion
Detecting Gas: Hydrogen sulfide H2S
Measure Range: 0-200ppm support customization
Signal output: RS485
Communicate interface optional: Modbus protocol
Display: No Display(LED and LCD display are optional)
Working pattern: Continuous work
Working Voltage: DC24V
기본 정보
Model Number: HFT-485-H2S
결제 및 배송 조건
제품 설명
Products Description

Fixed RS485 Modbus H2S detector

Fixed hydrogen sulfide detector test H2S concentration by natural diffusion.It uses imported gas sensor from UK with very high sensitivity and accuracy,RS485 digital signal output,standard Modbus protocol communicate interface are optional.
Brief Introduction:
● UK imported sensors
● High accuracy and sensitivity
● High & low alarm points
● DC24V power supply
● 4-20mA and RS485 optional
● Water and dust proof
● Relay switch signal
● Aluminum shell material
● Industrial explosion-proof
● CE ,ATEX,ISO approved
● One year warranty
Product Paramenters
Product name
CE ATEX Fixed H2S gas detector
Size and weight
144 mm * 190 mm * 74 mm,about 1130g
Sensor types
electrochemistry method
Destination gas
Hydrogen sulfide H2S
Measure range
0-200ppm,resolution is 1ppm,
0-100ppm,resolution is 0.1ppm
Working pattern
continuous work
Working voltage
DC24V
Display
No display(LED and LCD display are optional)
Output signal
RS485 digital signal output
Output way
Four wire system (Two power lines and two signal lines)
Temperature range
- 20 ℃ ~ 50 ℃
Humidity
15% ~ 90% RH (No condensation)
Explosion-proof number
CE10 1084
Explosion-proof marks
Exd II CT6
Transmission distance
＜ 1000 m
Certificate
CE, ATEX, CNEX, ISO9001
Standard package
Gas detector, Instruction in English, Certificate, carton package
Optional
Modbus communication, alarm light, multi gas alarm controller
Install Instructions
This fixed H2S gas detector usually uses together with alarm light and control panel,when the gas concentration exceed the alarm points,the light and controller will send out alarms to reminder for danger.
Product Features
1. Natural diffusion; 2. No display (LED and LCD display are optional); 3. Imported UK sensor elements; 4. RS485 digital output,MOdbus protocol is optional; 5. Can connect with alarm light, default without it; 6. Simple menu operation, complete functions and high reliability; 7. Provides an controlling external device of the switch output; 8. Having strong anti-jamming capability, convenient layout and simple wiring; 9. Can be connect with gas alarm controller,default without it; 10. Aluminum shell material with high strength, heat resistance and corrosion resistance; 11. Can connect with PC,PLC and DCS for data monitor and management; 12. CE ATEX ISO9001 CNEX explosion proof certificates are approved. 13. 100% strictly inspection before package and fast delivery.
Related gas detector
Tips: Not only for H2S gas, CO CO2 H2 LPG SO2 NOx CL2 HCL O3 PH3 O2 etc gases also can be detected,support customization,please contact us for more details.
Why Choose Us
1. More than 17 years professional gas alarm detection factory
2. Rich experience of exporting to many countries
3. Advanced technology and develop team
4. Strictly supervision and inspection system
5. Competitive price and satisfied service
6. Fast and safe delivery
7. OEM and ODM are welcomed
8. One year warranty and free maintenance within warranty period
9. "Very satisfied" and "working well" etc appraise from our customers all over the world.
Customer Feedback
Application
This fixed H2S gas detector is suitable for detecting the concentration of H2S in ambient air, widely used in cesspit, chemical industry, laboratory, mines, tunnels, underground pipelines and other places, to effectively prevent the occurrence of poisoning.
Certifications
Our gas detector has industrial production standards and international export standards，We focus on the production of products that meet the standards to provide the greatest guarantee for industrial safety.
Company Profile
Xi'an Huafan Technology Co., Ltd founded in 2003, specialized in toxic and hazardous gas detection and smart life filed, including research and develop products and operation service. It’s a high-tech enterprise from R & D to technology services and whole industry chain.
We are a production-oriented high-tech enterprise focusing on R & D,R & D department as the core department,Responsible for the core technology design, function upgrading and development, equipment installation technical support, maintenance and testing of the company's products, currently composed of 6 senior engineers.
We strictly control every link of production,we has its own regular production workshop, from production to quality inspection to the factory, in accordance with the strict implementation of production standards, we aim to provide customers with high quality products, we are constantly learning, improve and perfect, in the future, I believe we will become better and better.
FAQ
Q1: How many MOQ?
A: MOQ= 1piece
Q2: How about the Lead time?
A: For general parameter products,we can dispatch within 1-3 days after order confirmed.
Q3: Who take charge transportation fee?
A: Our price is FOB,exclude transportation fee,but we can quote it based on your order,you can choose.
Q4: Do you offer the guarantee for your products?
A:Yes, we offer 12 months warranty for our products.
Q5: What certificates can you support?
A: Explosion-proof CNEX,ISO9001, CE and ATEX.
Q6:Is it ok to print my logo on the gas detector?
A: Yes, OEM and ODE are available.
Q7:Can I get some discount?
A: Different products have different discount,please contact us for details.
Q8: Can I pay by T/T?
A: Yes,you can,T/T and paypal are supported.
Q9: Do you have after sales technical guidance?
A:Yes,any questions you can show us and our technical team will service for you at any time.
