Hot sale portable gas detection tubes for CO, NO2, CL2, CO2, H2, LEL
Product Overview:

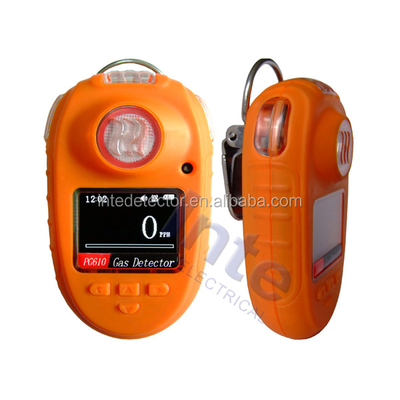

PG610 gas detector: it's portable and single gas detector, can detect a wide range of gases in operating site, widely used in municipal emergency rescue, oil chemical industry, metallurgy, coking, environmental protection and other industries.
Main features:
l Big OLED display, Highlighted, High-definition
l Automatically save the detecting data for 5000 articles
l Data progress bar display mode, can learn about the state of concentration
l Low power consumption , save energy, save electricity
l Real-time clock display function
l The key operation needs to input password to prevent wrong operation.
l Automatic calibration function, reduce the measuring error.
l Recover key data, avoid the loss of data
l Battery power real-time display, under-voltage hint, low pressure automatic shutdown
l Standard MINI-USB charging interface; charger is compatible with computer and cell phone's
l Charging protection function; when battery is full, charger will shut down automatically.
l Computer connection function; to realize data download, parameter setting (optional)
l Alarm type: audible and visual alarm, vibrating alarm
l STEL and TWA alarm
l Power on self-test function
l Adjust high and low alarm level
l Replaceable modularized sensor
Technical parameters:
|
Detecting Gas |
combustible gas,toxic gas,oxygen |
|
Measuring Range |
0-100%LEL |
|
Sampling Method |
diffused or pump suction (external electric sampling pump) |
|
Deviation |
≤± 3% F.S |
|
Respond Time |
T90 < 30 s |
|
Working Temperature |
Combustible gas: - 40 °C ~ + 70 °C |
|
Working Humidity |
< 95% R.H. no condensation |
|
Sensor service life |
3-5 YEAR |
|
Display Mode |
OLED screen shows density, time, battery power, Alarm state, percentage progress bar |
|
Data Storage |
5000 records |
|
Upload Data |
connected to computer via data line(optional) |
|
Alarm Type |
Light: wide-angle light emitting diode Sound: 90 Db humming; when concentration increased, frequency increases Vibration: oscillator speed of 1300 r/min |
|
Working Voltage |
DC3.6 V lithium ion battery, 1000 mAh |
|
Charging Time |
4 h ~ 6 h |
|
Working Time |
combustible gas more than 8 h (continuous); Toxic gas more than 72 h (continuous) |
|
Protection Class |
IP66 |
|
Weight |
140 g |
|
Appearance Size |
98 mm × 60 mm × 24 mm |
Standard configuration:
instrument box, gas detector, specifications, certificate of approval, warranty card, charger, gas hood
PG610 Diagram
Product Information Chart
|
Product Model |
Detected Gas |
Measuring range |
Resolution |
Respond Time |
Sensor service life |
|
PG610-CO |
CO |
0-1000ppm |
1ppm |
≤20 s |
2-3 year |
|
PG610-O2 |
O2 |
0-30%VOL |
0.1%vol |
≤20 s |
2-3 year |
|
PG610-O3 |
O3 |
0-10ppm |
0.1ppm |
≤30s |
2-3 year |
|
PG610-H2S |
H2S |
0-100ppm |
1ppm |
≤30 s |
2-3 year |
|
PG610-H2 |
H2 |
0-1000ppm |
1ppm |
≤30 s |
2-3 year |
|
PG610-CL2 |
CL2 |
0-20ppm |
0.1ppm |
≤30 s |
2-3 year |
|
PG610-NH3 |
NH3 |
0-200ppm |
1ppm |
≤30 s |
2-3 year |
|
PG610-SO2 |
SO2 |
0-20ppm |
0.1ppm |
≤30 s |
2-3 year |
|
PG610-NO |
NO |
0-250ppm |
1ppm |
≤30 s |
2-3 year |
|
PG610-NO2 |
NO2 |
0-20ppm |
0.1ppm |
≤30 s |
2-3 year |
|
PG610-CH2O |
CH2O |
0-50ppm |
0.01ppm |
≤30 s |
2-3 year |
|
PG610-HCL |
HCL |
0-20ppm |
0.1ppm |
≤30 s |
2-3 year |
|
PG610-HCN |
HCN |
0-20ppm |
0.1ppm |
≤30 s |
2-3 year |
|
PG610-ETO |
ETO |
0-100ppm |
1ppm |
≤30 s |
2-3 year |
|
PG610-CLO2 |
CLO2 |
0-10ppm |
0.1ppm |
≤30 s |
2-3 year |
|
PG610-CO2 |
CO2 |
0-5.00%vol |
0.01%vol |
≤30 s |
≥5 year |
|
PG610-EX |
Combustible gas |
0-100%LEL |
1%LEL |
≤30 s |
3-5 year |
|
As for unlisted detected gas and measuring range, please contact with our company |
|||||
